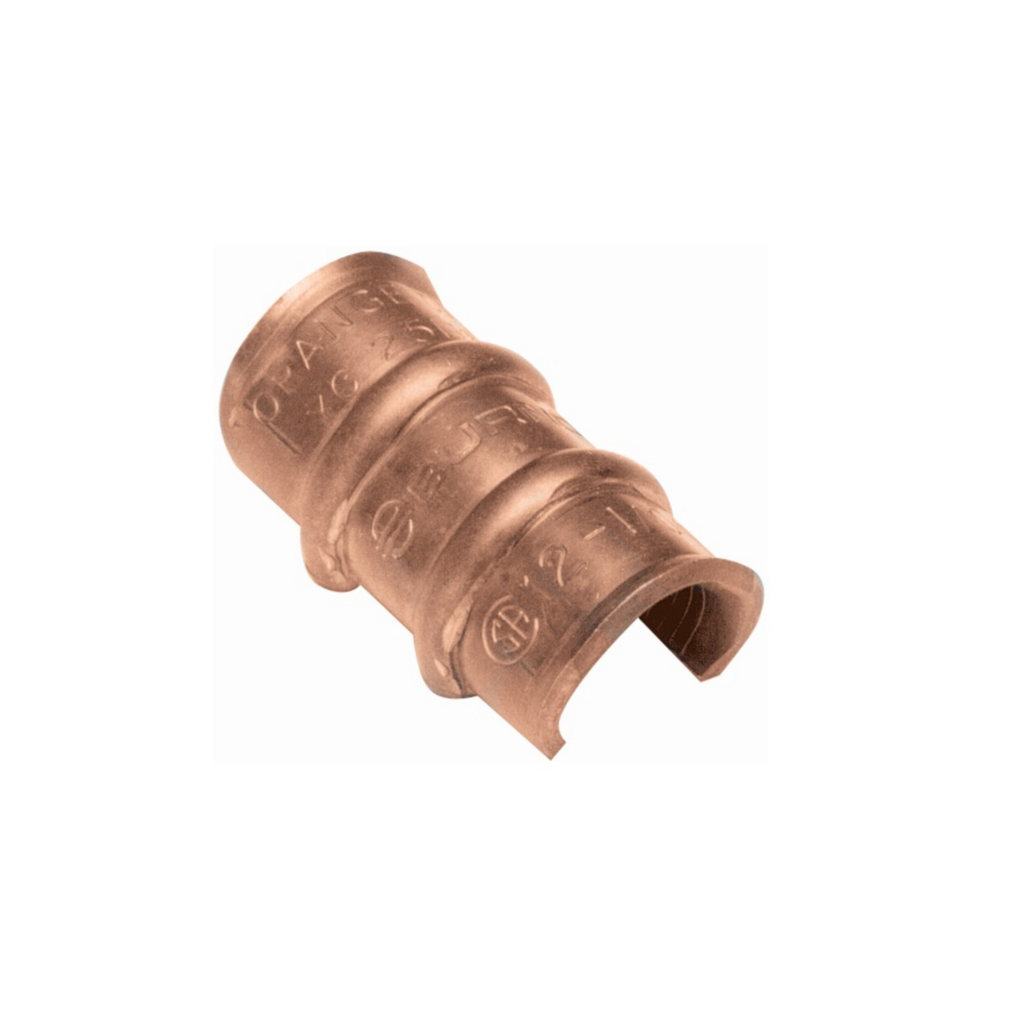

BUR YC3L12 THIN C-TAP 4-5RUN 6-5T
$3.64/ea
80 Available for Delivery
Order by for Delivery
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YC3L12
Independent Electric Part # 19506

Features

  • Manufactured Form High Conductivity Wrought Copper: Provides Low Resistance And Excellent Electrical Conductivity, Range-Taking Connector: Lowers Inventory Requirements, Reinforced Ribs: Provides Maximum Pull-Out Values, Compact Size: Easy To Tape And Insulate Connection, Economical: Provides Low Installed Cost, Use PUADP-1 Adapter With U Dies In Y46 HYPRESS, Color Code: Green, Wire Strip Length: 1-3/16 IN, Die Index: 11 Element A, Shape: C, Number Of Ribs: 1, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R, Y2MR Tool, W1CVT Die, (2)

Specifications

  • Conductor - Copper Str Run: 5 AWG;4 AWG;3 AWG
  • Conductor - Copper Str Run Range: 5 AWG-3 AWG
  • Conductor - Copper Str Tap: 12 AWG;10 AWG;9 AWG;8 AWG;7 AWG;6 AWG;5 AWG
  • Conductor - Copper Str Tap Range: 12 AWG-5 AWG
  • Country of Origin: US
  • Dimension - B Length fraction: 7/16 in
  • Dimension - B Length inch: 0.46 in
  • Dimension - D inch: 1.18 in
  • Dimension - Pad Width inch: 0.27 in
  • Dimension - Strip Length inch: 1-3/16
  • Each - Height: 0.08 in
  • Each - Length: 1.18 in
  • Each - Width: 0.46 in
  • Industry Standard(s): UL467
  • Plated: Y
  • Plating Type: Tin - Bright
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL467
  • Standards - RoHS Compliance Status: CM
  • Sub Brand: CRIMPIT

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

Item Long Description Copper Compression C Tap, Thin Wall, 5-4 AWG (Run), 6-5 AWG (Tap).
GTiN 00781810040140
Size 0.48 IN Dimension B X 0.37 IN Dimension C X 1.18 IN Dimension D X 081 IN Dimension T
Type YC-L Series
Material Copper
Conductor Size Run: 4, 3, 5 AWG
Applications For Making Copper Tap And Parallel Connections
Temperature Rating 194
Family Brand Name Burndy
Tap Size 12, 10, 8, 6, 5 AWG
Sub Brand CRIMPIT
Connection Type C-Tap
Plating Type Tin - Bright
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Green
