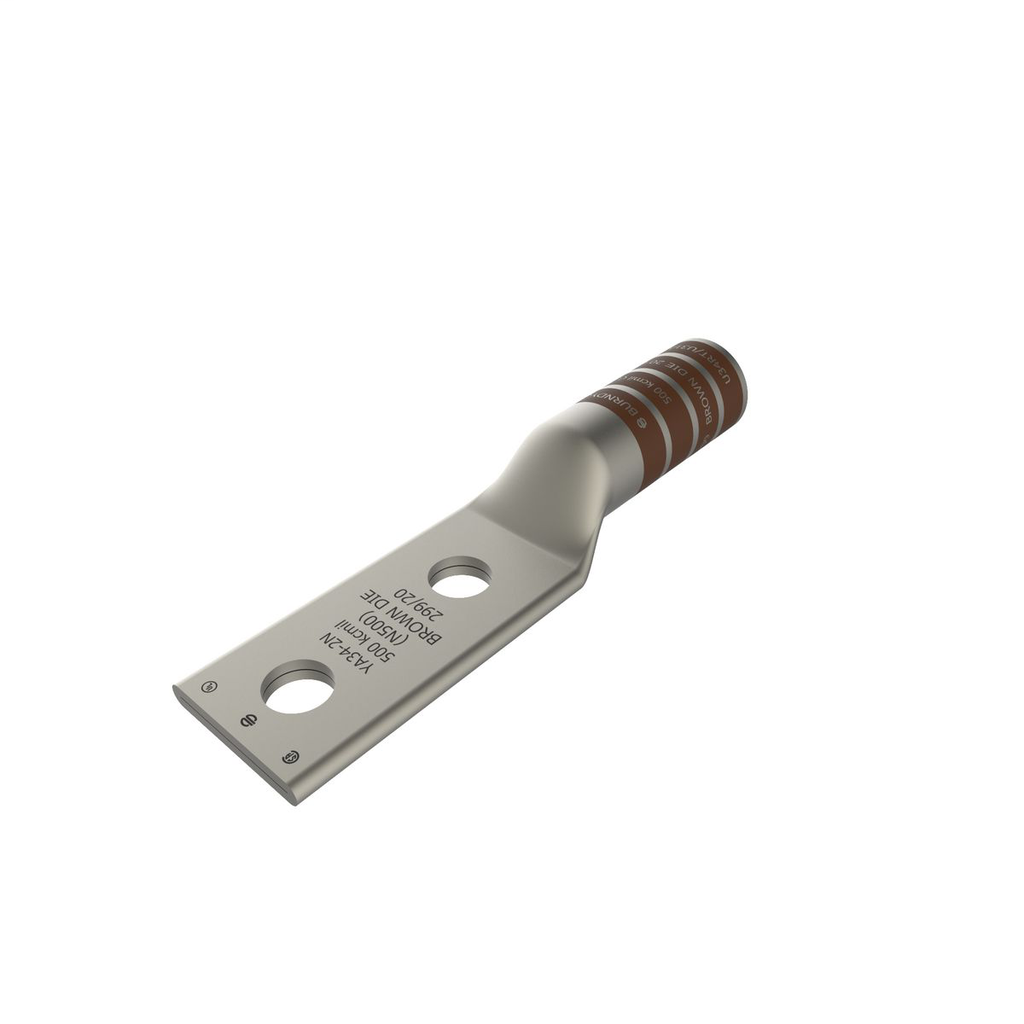

BUR YA342N 500 CU 2-HOLE LONG 1/2
Product image thumbnail 0
Product image thumbnail 1
$18.57/ea
Usually ships within 6 to 8 Days
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Burndy
Mfg Catalog # YA342N
Independent Electric Part # 785

Features

  • UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Die Index: 20, Temperature Rating: 90 DEG C, Wire Strip Length: 2-1/2 IN, Finish: Electro-Tin Plated, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W34VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W34VT, W34RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U34RT, U31ART Die, (4), Y46 Tool, U34RT, U31ART Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4)

Specifications

  • Buy American Compliant: Yes
  • Conductor - Copper Str Size: 500 kcmil
  • Conductor - Copper Str Size Range: 500 kcmil
  • Conductor - Material: Copper
  • Country of Origin: US
  • Dimension - B Length fraction: 2-1/4 in
  • Dimension - B Length inch: 2.25 in
  • Dimension - Bolt Hole Size inch: 0.52 in
  • Dimension - Bolt Size fraction: 1/2
  • Dimension - Hole Size inch: 0.56 in
  • Dimension - Hole Size mm: 14 mm
  • Dimension - L Length Overall mm: 154 mm
  • Dimension - Length Overall inch: 6.06 in
  • Dimension - N inch: 0.63 in
  • Dimension - Outside Diameter inch: 1.06 in
  • Dimension - Pad Width inch: 1.55 in
  • Dimension - Strip Length inch: 2-5/16
  • Dimension - Stud Size inch: 1/2
  • Dimension - Z inch: 0.64 in
  • Each - Height: 1.05 in
  • Each - Length: 6.06 in
  • Each - Width: 1.55 in
  • Feature - Barrel Style: Chamfered
  • Feature - Barrel Type: Long
  • Industry Standard(s): UL 486A-486B
  • Physical Attribute - Number of Holes: 2
  • Physical Attribute - Tongue Angle: Straight
  • Physical Attribute - Tongue Type: Standard
  • Plated: Y
  • Plating Type: Tin
  • Product Type: Compression
  • Rating - KVA: 35 kV
  • Show Add To ProjectList: Yes
  • Standards - Industry Standards Met: UL486A-UL486B
  • Standards - RoHS Compliance Status: CM
  • Trade Name: HYLUG™
  • Application: For Code Conductor
  • Special Features: Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Tongue Angle: Straight, Die Index: 20, Temperature Rating: 90 DEG C, Wire Strip Length: 2-1/2 IN, Finish: Electro-Tin Plated, Color Code: Brown, Tools, Die Set Catalog Number, And (number Of Crimps): Mechanical: MD6, OUR840, MD7-34R Tool, W34VT Die, (4), Hydraulic: BCT500HS, Y500CTHS Tool, W34VT, W34RT Die, (4), Y35, Y39, Y750, PAT750 Tool, U34RT, U31ART Die, (4), Y46 Tool, U34RT, U31ART Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4)
  • Standard: UL 486A-486B
  • Sub Brand: HYLUG
  • Type: Long Barrel, Tin Plated
  • IGS 3D Model Asset Reference URL 1: https://hubbellcdn.com/igs/YA342N_MODEL-IGES.zip
  • PDF 3D Model Asset Reference URL 2: https://hubbellcdn.com/PDF3DFile/YA342N_MODEL-PDF.pdf
  • STEP 3D Model Asset Reference URL 3: https://hubbellcdn.com/step3dfile/YA342N_MODEL-STEP.zip

Certifications

  • CSA Approved: Yes
  • cULus: No
  • ETL: No
  • UL Recognized: No
  • EU RoHS Indicator: Yes

Overview

Item Long Description 500 kcmil CU, Two Hole, 1/2 Stud Size, 1-3/4 Hole Spacing, Long Barrel Internal Chamfer, Tin Plated, UL/CSA, 90C, Up to 35kV, Brown Color Code, 20 or 299 Die Index.
GTiN 00781810506059
Finish Tin Plated
Color Brown
Type YA-2N
Barrel Type Long, Straight
Material Copper
Stud Size 1/2 in
Conductor Size 500 kcmil
Number of Holes 2 Hole
Applications For Code Conductor
Cable Size 500 KCMIL, 240 SQ-MM For Class 2 Conductor
Temperature Rating 90 C
Family Brand Name Burndy
Used With Code Conductor
Sub Brand Hylug
Length 6.06 in
Hole Size 14 mm
Connection Type Terminal
Plating Type Tin
Conductor Material Copper
Plated? Yes
CSA Yes
Max Voltage 35000 V
Color Coding Brown
