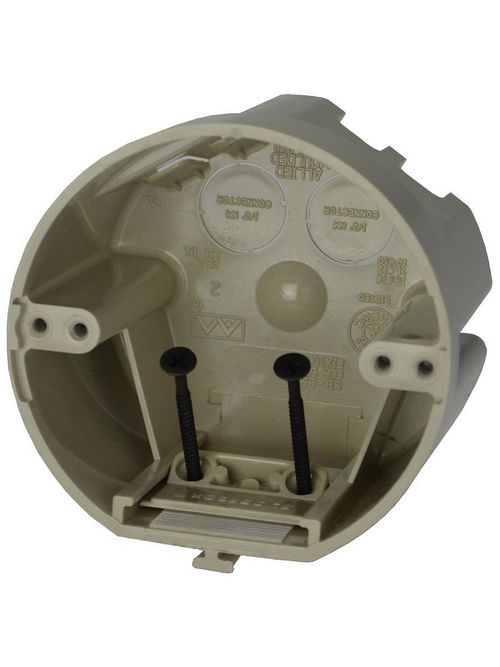

Allied Moulded Products SB-CB 2-3/4 x 4 Inch 26 In Steel Stud/Wood Screw Ceiling Fixture Box
Product image thumbnail 0
Product image thumbnail 1
$700.63/c (100 ea)
5 Available for Delivery
Order by 06:00pm Monday for Delivery Tuesday
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # SB-CB
Independent Electric Part # 80465

Features

Machine tapped fixture holes, adjustable mounting plate for additional substrate thickness

Specifications

  • Brand: SLIDERBOX
  • Catalog #: SB-CB
  • Width: 4 in.
  • Depth: 2-3/4 in.
  • Volume: 25 cu. in.
  • Round Ceiling Box
  • Carton Quantity: 12
  • Carton Weight: 3 lb.
  • UPC: 085339945055
  • UNSPSC: 39121316
  • Patents: U.S. Patent No. 7,855,338
  • Country of Origin: U.S. Patent No. 6,365,831 B1
  • Color: Beige/tan
  • Material: Polycarbonate
  • Mounting: Internal screws with adjustable slider plate for substrates 1/2" to 1 5/32"
  • Support Rating: 50 lbs fixture support

Additional Materials

  • Galvanized steel brackets and plated carbon steel fasteners
  • Carbon steel fasteners

Application

New and old work residential construction 2 HR fire resistive floors and ceilings (50 lbs. fixture support)

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

Family Brand Name Allied Moulded
Item Long Description 25.0 Cu. In. 4" dia. round fixture support box for use with nonmetallic sheathed cable - Machine tapped fixture holes, adjustable mounting plate for additional substrate thickness - New and old work residential construction 2 HR fire resistive floors and ceilings (50 lbs. fixture support) - Polycarbonate - thermoplastic box - Size: Depth=2 3/4", Dia=4" - Mount with Internal screws with adjustable slider plate for substrates 1/2" to 1 5/32"
GTiN 00085339945055
Width 4 in
Size Depth=2 3/4", Dia=4"
Color Beige,Tan
Type 4" Dia. Round Fixture Support Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material Polycarbonate - Thermoplastic
Applications New and old work residential construction 2 HR fire resistive floors and ceilings (50 lbs. fixture support)
Mounting Type Internal Screws With Adjustable Slider Plate For Substrates 1/2" To 1 5/32"
Depth 2-3/4 in
Standard UL 514 C
Construction Injection Molded
Cable Entry Four Molded-in Speed Klamps With Two 1/2" Knockouts
Sub Brand SLIDERBOX
