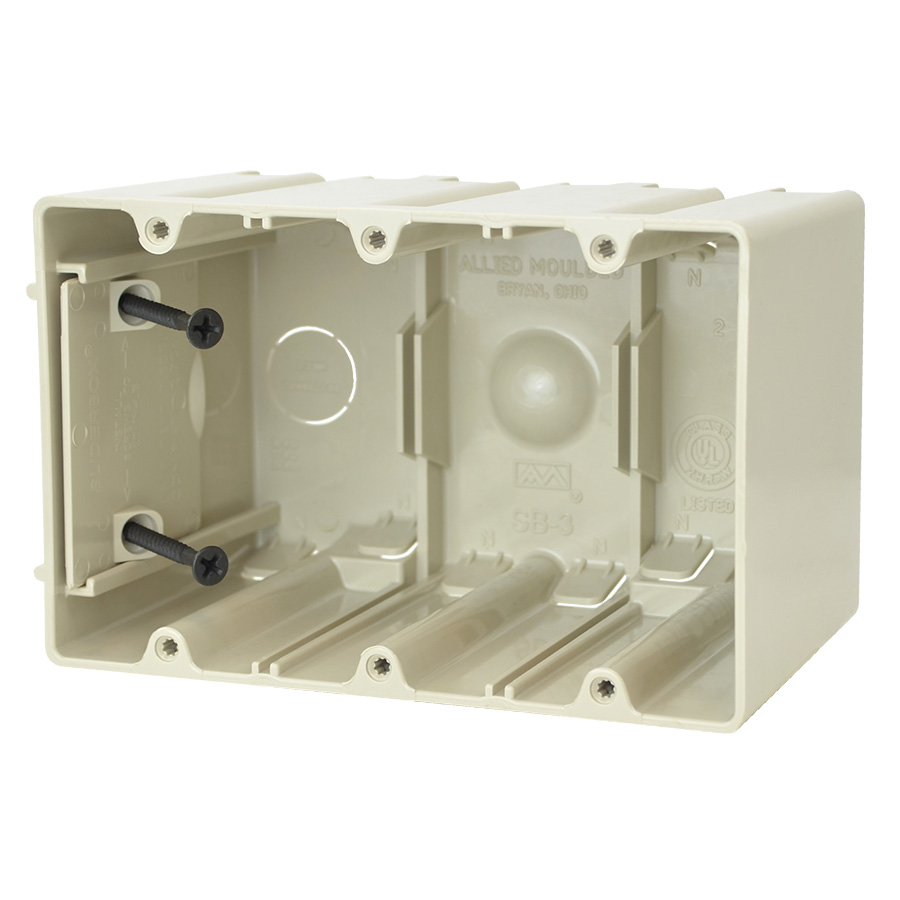

Allied Moulded Products SB-3 64.0 Inch  Internal Screws Adjustable Switch and Outlet Box
Product image thumbnail 0
Product image thumbnail 1
$711.88/c (100 ea)
Usually ships within 6 to 8 Days
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # SB-3
Independent Electric Part # 80462

Features

Molded-in splined device holes, adjustable slider plate for additional wall substrate thickness, slot provision for low voltage divider, rectangular exterior for easy cut-in, leveling ribs, offset gauge marks

Specifications

  • Brand: SLIDERBOX
  • Catalog #: SB-3
  • Height: 3-3/4 in.
  • Width: 5-13/16 in.
  • Depth: 3-9/16 in.
  • Volume: 61 cu. in.
  • Wall Box
  • Number of Gangs: Old or New Work
  • Carton Quantity: 6
  • Carton Weight: 3 lb.
  • UPC: 085339945024
  • UNSPSC: 39121308
  • Patents: U.S. Patent No. 7,855,338
  • Country of Origin: U.S. Patent No. 6,365,831 B1
  • Color: Beige/tan
  • Material: Polycarbonate
  • Mounting: Internal screws with adjustable slider plate for substrates 1/2" to 1 3/8"
  • Additional Materials: Carbon steel fasteners

Application

New and old work residential construction 2 HR fire resistive walls and ceilings

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

Item Long Description 61.0 Cu. In. Three gang adjustable electrical box for use with nonmeatllic sheathed cable - Molded-in splined device holes, adjustable slider plate for additional wall substrate thickness, slot provision for low voltage divider, rectangular exterior for easy cut-in, leveling ribs, offset gauge marks - New and old work residential construction 2 HR fire resistive walls and ceilings - Polycarbonate - Thermoplastic - Size: D=3 9/16", W=5 13/16", H=3 3/4" - Mount with Internal screws with adjustable slider plate for substrates 1/2" to 1 3/8"
GTiN 00085339945024
Width 5-13/16 in
Size D=3 9/16", W=5 13/16", H=3 3/4"
Color Beige,Tan
Type Three Gang Adjustable Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material Polycarbonate - Thermoplastic
Applications New and old work residential construction 2 HR fire resistive walls and ceilings
Mounting Type Internal Screws With Adjustable Slider Plate For Substrates 1/2" To 1 3/8"
Depth 3 in
Height 3 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Cable Entry Speed Klamps
Sub Brand SLIDERBOX
