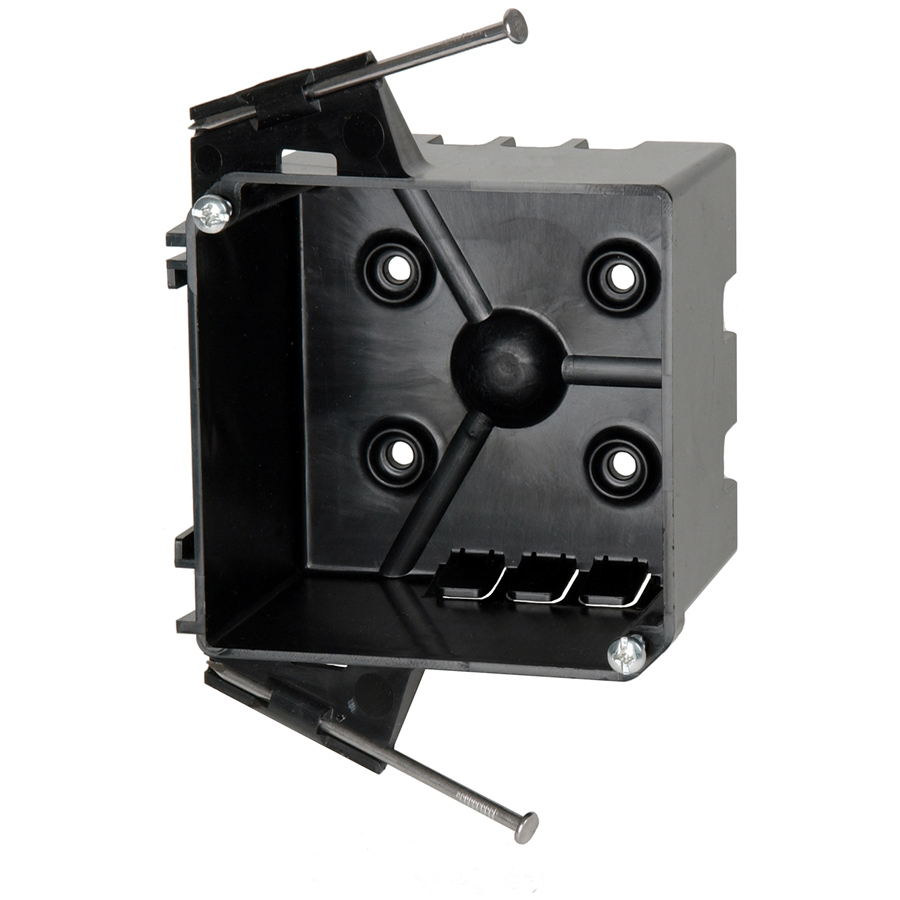

ALLIED PJ-32N 4 IN SQ BOX 32.5 CU I
$530.54/c (100 ea)
44 Available for Delivery
Order by 06:00pm Friday for Delivery Monday
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # PJ-32N
Independent Electric Part # 322779

Features

Machine tapped cover screw holes, cover screws included

Specifications

  • Brand: flexBOX
  • Catalog #: PJ-32N
  • Height: 4 in.
  • Width: 4 in.
  • Depth: 2-1/2 in.
  • Volume: 32.5 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Carton Quantity: 48
  • Carton Weight: 13 lb.
  • UPC: 085339990031
  • UNSPSC: 39121332
  • Patents: U.S. Patent No. 6,365,831 B1
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polyvinyl Chloride
  • Mounting: Angled mid-nails

Additional Materials

  • Carbon steel fasteners
  • Plated carbon steel fasteners

Application

In the wall junction box with optional single and two gang plaster ring covers for junction box capacity and device applications - 2 HR fire resistive walls

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Categories

Overview

Item Long Description 32.5 Cu. In. 4 square inch electrical junction box for use with nonmetallic sheathed cable - Machine tapped cover screw holes, cover screws included - In the wall junction box with optional single and two gang plaster ring covers for junction box capacity and device applications - 2 HR fire resistive walls - PVC - Thermoplastic - Size: D=2 1/2", W=4", H=4" - Mount with Angled mid-nails
GTiN 00085339990031
Width 4 in
Size D=2 1/2", W=4", H=4"
Color Black
Type 4 Square Inch Electrical Junction Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material PVC - Thermoplastic
Applications In the wall junction box with optional single and two gang plaster ring covers for junction box capacity and device applications - 2 HR fire resistive walls
Mounting Type Angled Mid-nails
Depth 2-1/2 in
Height 4 in
Connection Type For Use With 14-2 Through 10-3 Nonmetallic Sheathed Cable With Ground
Family Brand Name Allied Moulded
Construction Injection Molded
Tc Connection For use with 14-2 through 10-3 nonmetallic sheathed cable with ground
Cable Entry Eight Molded-in Speed Klamps
Sub Brand FLEXBOX
