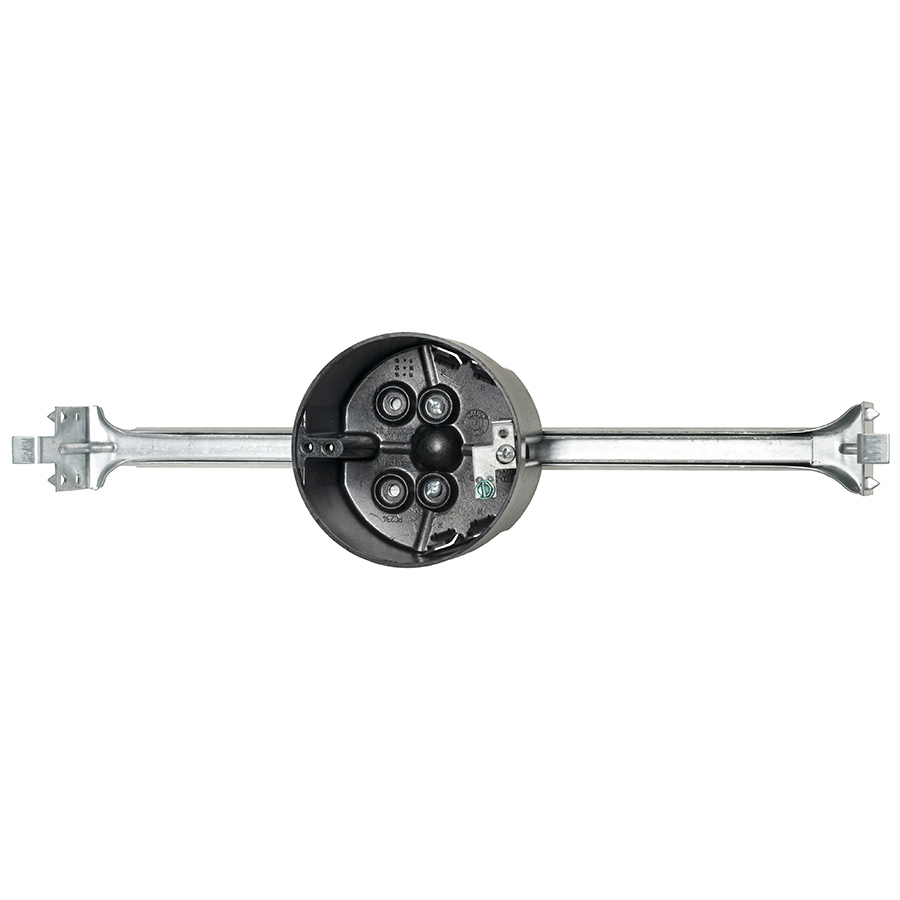

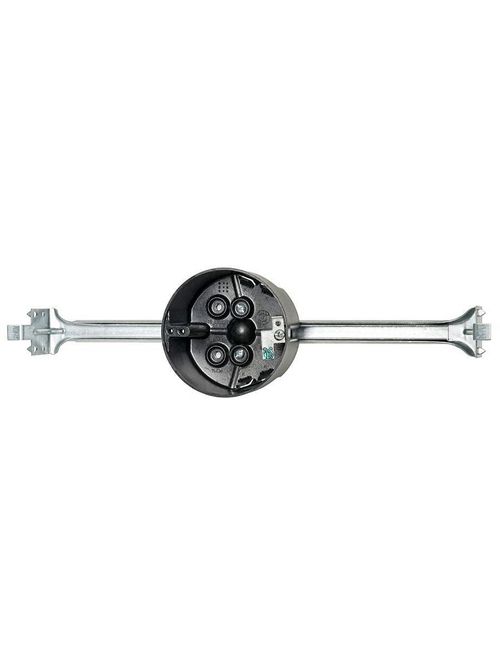

ALLIED PC234-BHG 4 RND BOX 21.0 CU
$670.73/c (100 ea)
31 Available for Delivery
Order by 06:00pm Wednesday for Delivery Thursday
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # PC234-BHG
Independent Electric Part # 242203

Features

Machine tapped fixture holes, ground strap

Specifications

  • Brand: flexBOX
  • Catalog #: PC234-BHG
  • Width: 4 in.
  • Depth: 2-5/16 in.
  • Volume: 23 cu. in.
  • Type of Installation: New Work
  • Round Ceiling Box
  • Carton Quantity: 24
  • Carton Weight: 27 lb.
  • UPC: 085339980339
  • UNSPSC: 39121316
  • Patents: U.S. Patent No. 6,365,831 B1
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polycarbonate
  • Mounting: Adjustable bar hanger - 16" to 24" on center joist application
  • Support Rating: 50 lbs fixture support

Additional Materials

  • Galvanized steel brackets and plated carbon steel fasteners
  • Galvanized ground strap with plated carbon steel fastener and green plated carbon steel ground screw

Application

New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support)

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches

Overview

Item Long Description 23.0 Cu. In. 4" dia. round fixture support box for use with nonmetallic sheathed cable - Machine tapped fixture holes, ground strap - New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support) - Polycarbonate - thermoplastic box with galvanized adjustable stabilizer bar - Size: Depth=2 15/16", Dia=4" - Mount with Adjustable bar hanger - 16" to 24" on center joist application
GTiN 00085339980339
Width 4 in
Size Depth=2 15/16", Dia=4"
Color Black
Type 4" Dia. Round Fixture Support Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material Polycarbonate,Thermoplastic
Applications New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support)
Mounting Type Adjustable Bar Hanger - 16" To 24" On Center Joist Application
Depth 2-5/16 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Cable Entry Speed Klamps
Sub Brand FLEXBOX
