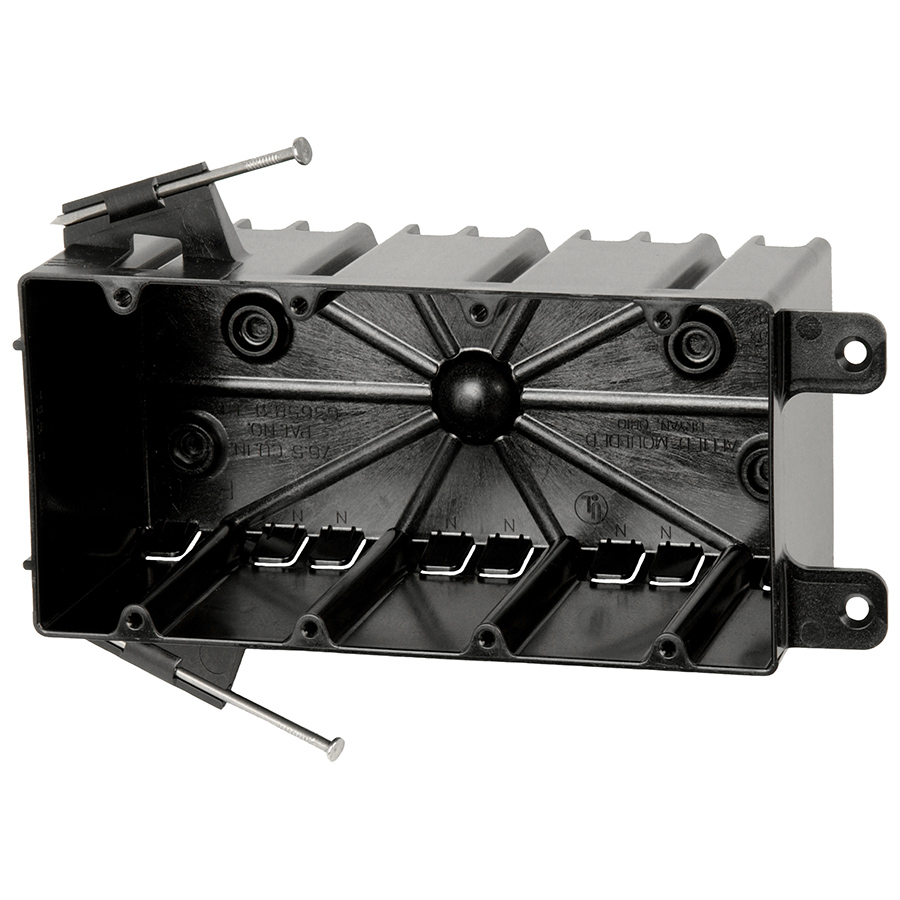

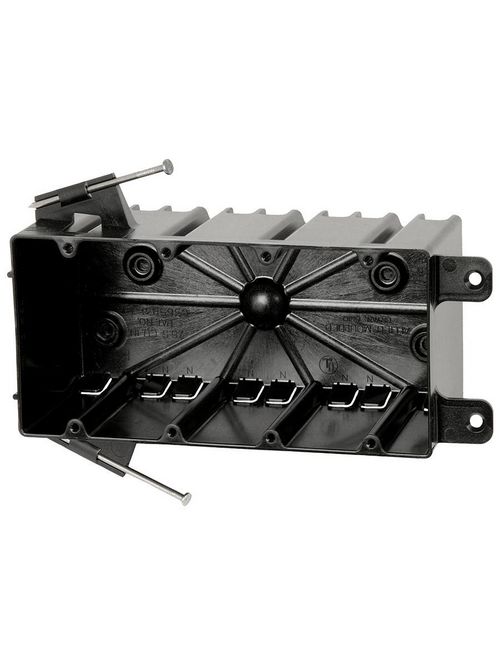

Allied Moulded Products P-764 3-1/4 x 7-5/8 x 3-3/4 Inch 74.8 In 4-Gang Polycarbonate Angled Nail Switch/Receptacle Outlet Box
$694.20/c (100 ea)
19 Available for Delivery
Order by 06:00pm Wednesday for Delivery Thursday
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # P-764
Independent Electric Part # 30940

Features

Molded-in splined device holes, offset gauge marks, leveling ribs

Specifications

  • Brand: flexBOX
  • Catalog #: P-764
  • Height: 3-3/4 in.
  • Width: 7-5/8 in.
  • Depth: 3-1/4 in.
  • Volume: 74.8 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Number of Gangs: 4
  • Carton Quantity: 18
  • Carton Weight: 10 lb.
  • UPC: 085339940609
  • UNSPSC: 39121308
  • Patents: U.S. Patent No. 6,365,831 B1
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polycarbonate
  • Mounting: Angled mid nails with opposite side drywall tabs
  • Additional Materials: Carbon steel fasteners

Application

New work residential construction

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Material

  • Not for use in fire resistive wall or ceiling assemblies

Overview

Item Long Description 74.8 Cu. In. Four gang electrical box for use with nonmeatllic sheathed cable - Molded-in splined device holes, offset gauge marks, leveling ribs - New work residential construction - Polycarbonate - Thermoplastic - Size: D=3 1/4", W=7 5/8", H=3 3/4" - Mount with Angled mid nails with opposite side drywall tabs
GTiN 00085339940609
Width 7-5/8 in
Size D=3 1/4", W=7 5/8", H=3 3/4"
Color Black
Type Four Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material Polycarbonate - Thermoplastic
Applications New work residential construction
Mounting Type Angled Mid Nails With Opposite Side Drywall Tabs
Depth 3 in
Height 3 in
Family Brand Name Allied Moulded
Construction Injection Molded
Number of Gangs 4 Gang
Cable Entry Sixteen Molded-in Speed Klamps
Sub Brand FLEXBOX
