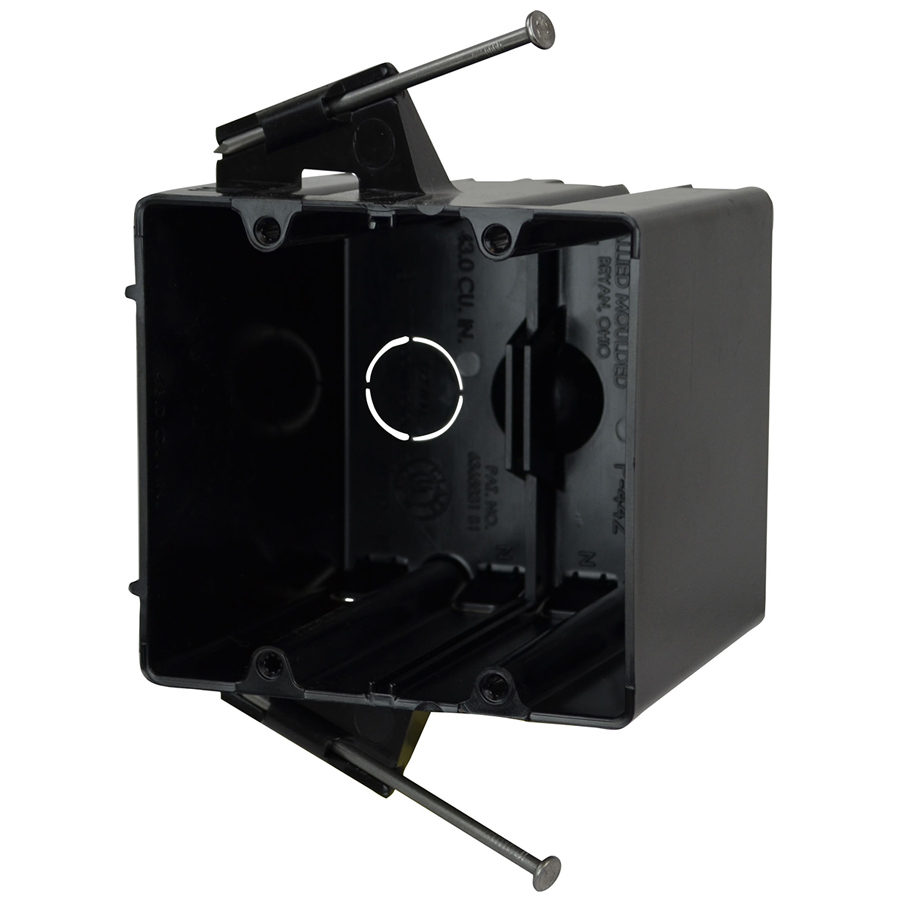

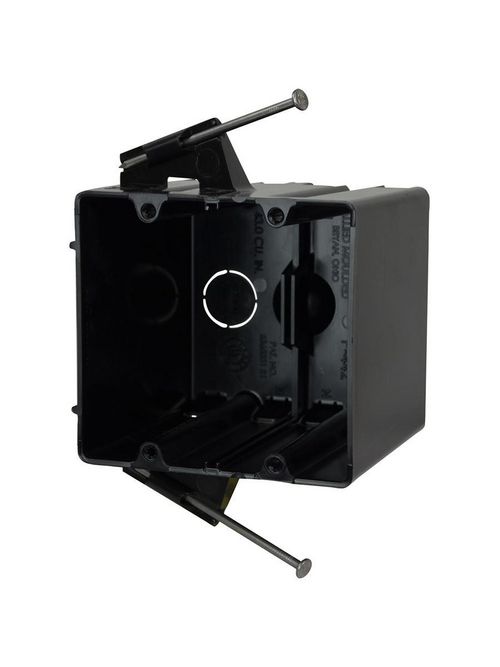

Allied Moulded Products P-442 3-9/16 x 4 x 3-3/4 Inch 43 In 2-Gang Angled Nail Switch/Receptacle Outlet Box
$258.15/c (100 ea)
64 Available for Delivery
Order by 06:00pm Wednesday for Delivery Thursday
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # P-442
Independent Electric Part # 4552

Features

Molded-in splined device holes, offset gauge marks, leveling ribs

Specifications

  • Brand: flexBOX
  • Catalog #: P-442
  • Height: 3-3/4 in.
  • Width: 4 in.
  • Depth: 3-9/16 in.
  • Volume: 43.5 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Number of Gangs: 2
  • Carton Quantity: 48
  • Carton Weight: 17 lb.
  • UPC: 085339440000
  • UNSPSC: 39121308
  • Patents: U.S. Patent No. 6,365,831 B1
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polycarbonate
  • Mounting: Angled mid nails
  • Additional Materials: Carbon steel fasteners

Application

New work residential construction 2 HR fire resistive walls

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

Item Long Description 43.5 Cu. In. Two gang electrical box for use with nonmeatllic sheathed cable - Molded-in splined device holes, offset gauge marks, leveling ribs - New work residential construction 2 HR fire resistive walls - Polycarbonate - Thermoplastic - Size: D=3 9/16", W=4", H=3 3/4" - Mount with Angled mid nails
GTiN 00085339440000
Width 4 in
Size D=3 9/16", W=4", H=3 3/4"
Color Black
Type Two Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Metallic,Non-Conductive
Material Polycarbonate - Thermoplastic
Applications New work residential construction 2 HR fire resistive walls
Mounting Type Angled Mid Nails
Depth 3 in
Height 3 in
Family Brand Name Allied Moulded
Construction Injection Molded
Number of Gangs 2 Gang
Cable Entry Eight Molded-in Speed Klamps
Sub Brand FLEXBOX
