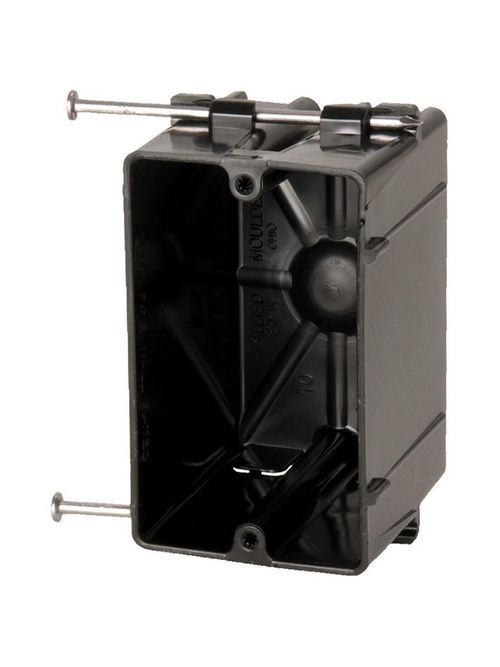

Allied Moulded Products P-181 2-5/8 x 2-1/4 x 3-3/4 Inch 18 In 1-Gang Angled Mid-Nail Switch/Receptacle Outlet Box
$52.27/c (100 ea)
720 Available for Delivery
Order by 06:00pm Wednesday for Delivery Thursday
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # P-181
Independent Electric Part # 4520

Features

Molded-in splined device holes, offset gauge marks, leveling ribs

Specifications

  • Brand: flexBOX
  • Catalog #: P-181
  • Height: 3-3/4 in.
  • Width: 2-5/16 in.
  • Depth: 2-5/8 in.
  • Volume: 18 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Number of Gangs: 1
  • Carton Quantity: 100
  • Carton Weight: 21 lb.
  • UPC: 085339243915
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polyvinyl Chloride
  • Mounting: Angled mid nails
  • Additional Materials: Carbon steel fasteners

Application

New work residential construction 2 HR fire resistive walls & ceilings

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Distance between boxes must be 4-½ feet from one another

Overview

Item Long Description 18.0 Cu. In. Single gang electrical box for use with nonmeatllic sheathed cable - Molded-in splined device holes, offset gauge marks, leveling ribs - New work residential construction 2 HR fire resistive walls & ceilings - PVC - Thermoplastic - Size: D=2 5/8", W=2 5/16", H=3 3/4" - Mount with Angled mid nails
GTiN 00085339243915
Width 2-5/16 in
Size D=2 5/8", W=2 5/16", H=3 3/4"
Color Black
Type Single Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material PVC - Thermoplastic
Applications New work residential construction 2 HR fire resistive walls & ceilings
Mounting Type Angled Mid Nails
Depth 2-5/8 in
Height 3 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Number of Gangs 1 Gang
Cable Entry Knockouts
Sub Brand FLEXBOX
