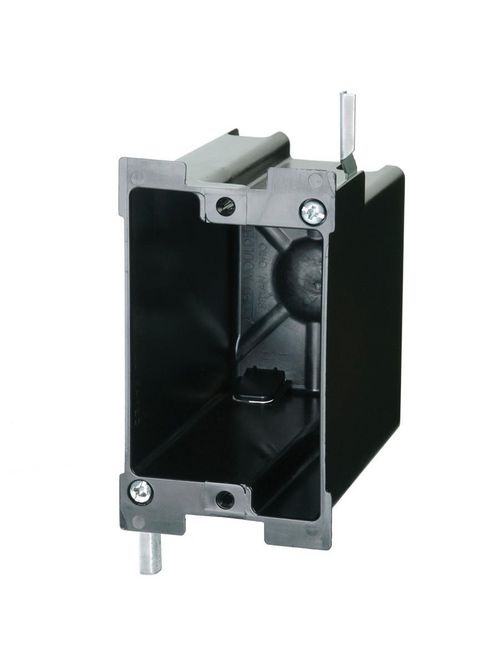

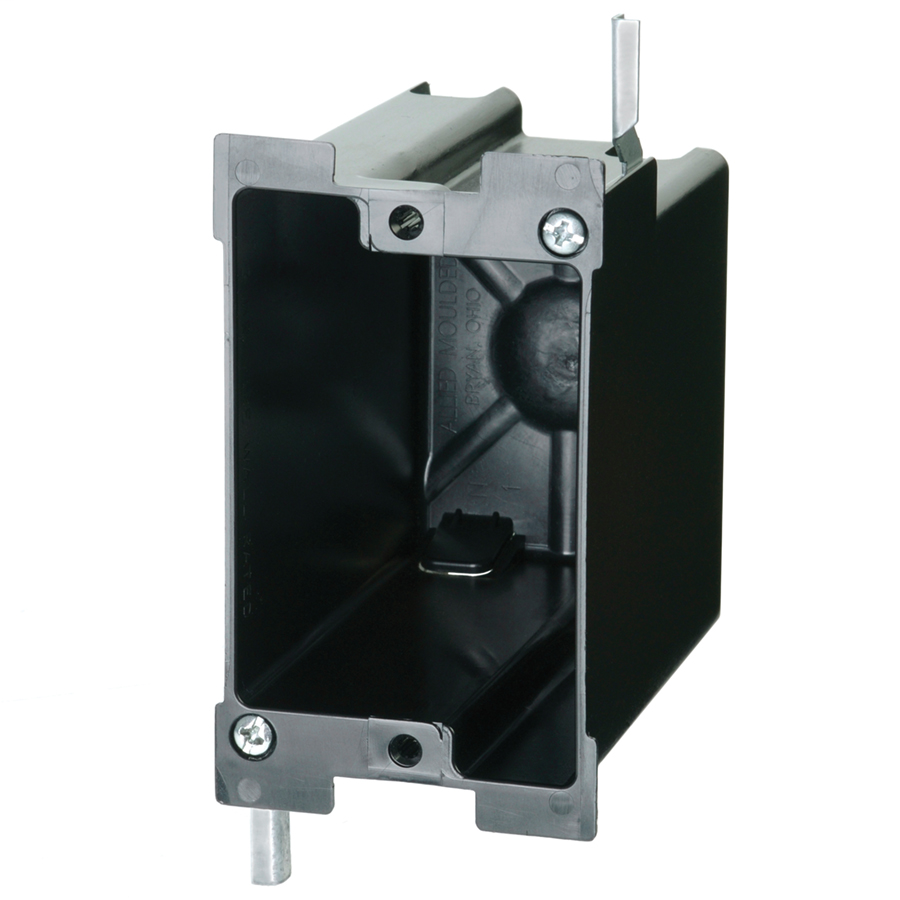

Allied Moulded Products P-122OW 22.5 In 1-Gang Switch/Receptacle Outlet Box
Product image thumbnail 0
Product image thumbnail 1
$286.94/c (100 ea)
Usually ships within 9 to 13 Days
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # P-122OW
Independent Electric Part # 301636

Features

Molded-in spline device holes, rectangular exterior for easy cut-in

Specifications

  • Brand: flexBOX
  • Catalog #: P-122OW
  • Height: 3-3/4 in.
  • Width: 2-5/16 in.
  • Depth: 3-3/4 in.
  • Volume: 22.5 cu. in.
  • Type of Installation: Old Work
  • Wall Box
  • Number of Gangs: 1
  • Carton Quantity: 48
  • Carton Weight: 14 lb.
  • UPC: 085339249139
  • UNSPSC: 39121308
  • Patents: U.S. Patent No. 6,365,831 B1
  • Country of Origin: United States of America
  • Color: Black
  • Material: Polyvinyl Chloride
  • Mounting: Metal wing brackets/nonmetal ears wall compression
  • Additional Materials: Galvanized steel brackets and plated carbon steel fasteners

Application

Old work residential construction 2 HR fire resistive walls

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes must be 4-½ feet from one another
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

Item Long Description 22.5 Cu. In. Single gang electrical box for use with nonmeatllic sheathed cable - Molded-in spline device holes, rectangular exterior for easy cut-in - Old work residential construction 2 HR fire resistive walls - PVC - Thermoplastic - Size: D=3 3/4", W=2 3/8", H=3 3/4" - Mount with Metal wing brackets/nonmetal ears wall compression
GTiN 00085339249139
Width 2-5/16 in
Size D=3 3/4", W=2 3/8", H=3 3/4"
Color Black
Type Single Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material PVC - Thermoplastic
Applications Old work residential construction 2 HR fire resistive walls
Mounting Type Metal Wing Brackets/nonmetal Ears Wall Compression
Depth 3 in
Height 3 in
Family Brand Name Allied Moulded
Construction Injection Molded
Number of Gangs 1 Gang
Cable Entry Four Molded-in Speed Klamps
Sub Brand FLEXBOX
