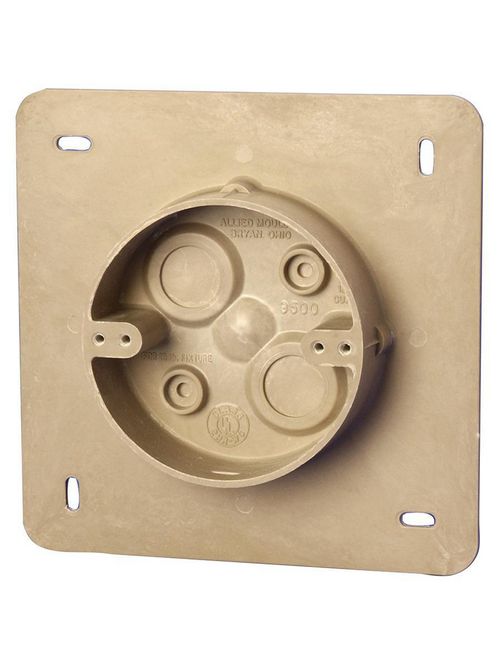

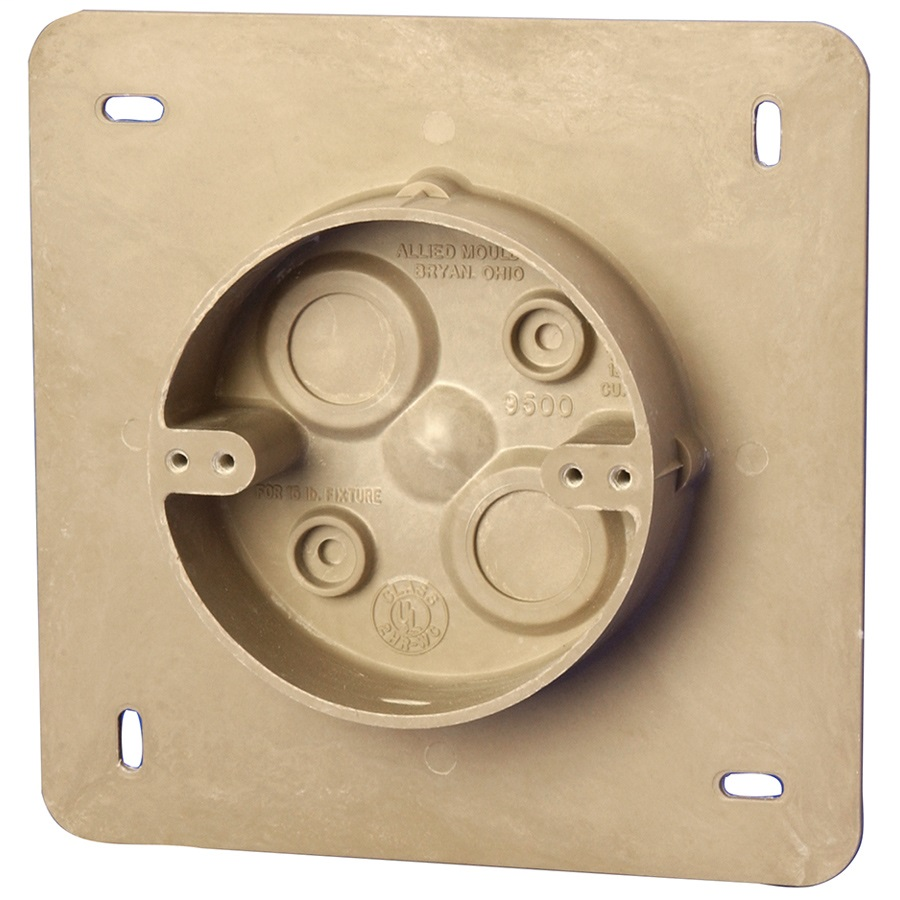

Allied Moulded Products AC9500 4 x 1-1/4 Inch 12 In Fiberglass Round Fixture Outlet Box
$649.27/c (100 ea)
Usually ships within 6 to 8 Days
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # AC9500
Independent Electric Part # 399866

Features

Machine tapped fixture holes, "pop-in" cable clamp, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures

Specifications

  • Brand: fiberglassBOX
  • Catalog #: AC9500
  • Width: 4 in.
  • Depth: 1-1/4 in.
  • Volume: 12 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Carton Quantity: 20
  • Carton Weight: 12 lb.
  • UPC: 085339095002
  • UNSPSC: 39121309
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Back side mount with fasteners
  • Additional Materials: Nonmetallic pop-in cable clamp
  • Support Rating: 15 lb fixture support

Application

Residential home - exterior light fixture electrical box (15 lb fixture rating) for use with nonmetallic sheathed cable

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Distance between boxes must be 4-½ feet from one another

Overview

Item Long Description 12.0 Cu. In. 4" dia. round fixture support box with 7" square mounting flange for use with nonmetallic sheathed cable - Machine tapped fixture holes, "pop-in" cable clamp, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - Residential home - exterior light fixture electrical box (15 lb fixtuer rating) for use with nonmetallic sheathed cable - Fiberglass reinforced polyester - thermoset box - Size: Box - Depth=1 1/4", Dia=4", flange - 7" x 7" - Mount with Back side mount with fasteners
GTiN 00085339095002
Width 4 in
Size Box - Depth=1 1/4", Dia=4", flange - 7" x 7"
Color Beige/tan
Type 4" Dia. Round Fixture Support Box With 7" Square Mounting Flange For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material Fiberglass Reinforced Polyester
Applications Residential home - exterior light fixture electrical box (15 lb fixtuer rating) for use with nonmetallic sheathed cable
Mounting Type Back Side Mount With Fasteners
Depth 1-1/4 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Cable Entry 1/2" Knockout With Pop-in Cable Clamp
Sub Brand FIBERGLASSBOX
