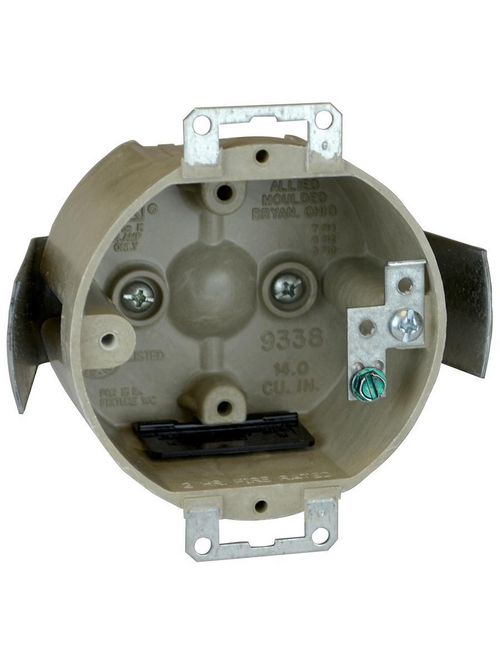

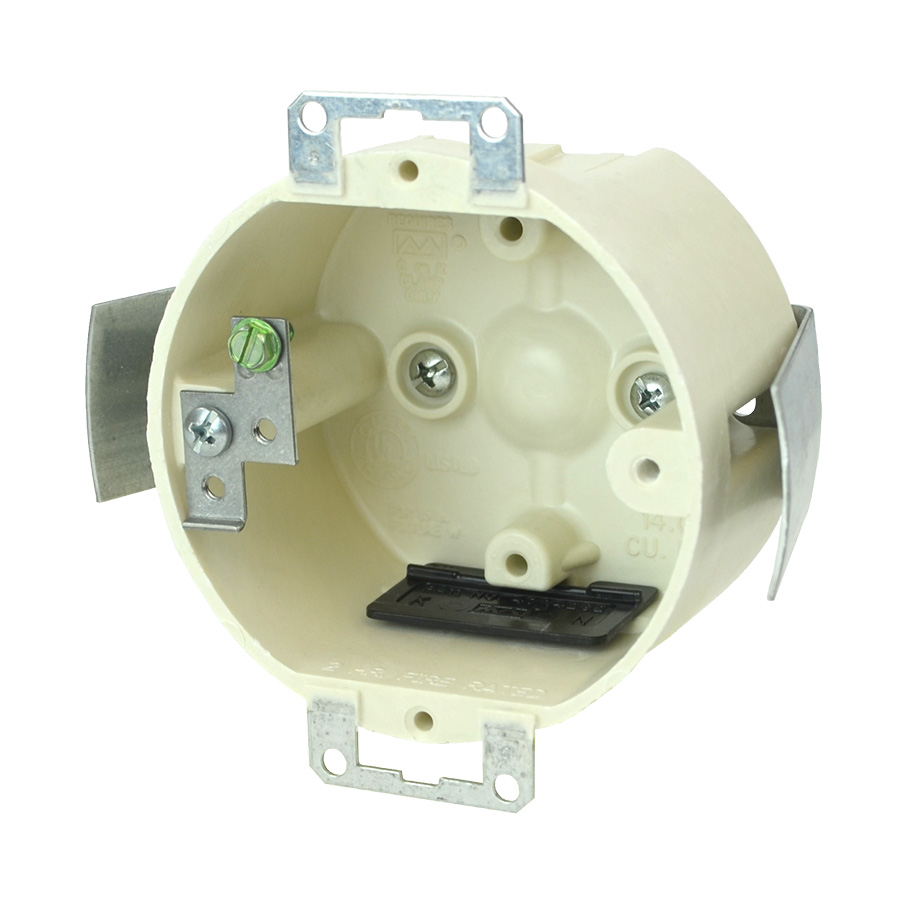

Allied Moulded Products 9338-ESGK 3.50 x 2.00 Inch 14.0 In Ears Snap Ground Strap Round Fixture Outlet
Product image thumbnail 0
Product image thumbnail 1
$447.11/c (100 ea)
153 Available for Delivery
Order by 06:00pm Thursday for Delivery Friday
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 9338-ESGK
Independent Electric Part # 299673

Features

Machine tapped fixture holes, ground strap, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 9338-ESGK
  • Width: 3-1/2 in.
  • Depth: 2 in.
  • Volume: 14 cu. in.
  • Type of Installation: Old Work
  • Wall Box
  • Carton Quantity: 50
  • Carton Weight: 21 lb.
  • UPC: 085339460213
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Snap bracket/metal ears wall compression
  • Support Rating: 15 lb fixture support

Additional Materials

  • Galvanized steel brackets and plated carbon steel fasteners
  • Polyvinyl chloride clamps
  • Galvanized ground strap with plated carbon steel fastener and green plated carbon steel ground screw

Application

Old work residential construction 2 HR fire resistive walls (15 lbs fixture support)

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

Item Long Description 14.0 Cu. In. 3.5" dia. round fixture support (15 lbs.) box for use with nonmetallic sheathed cable - Machine tapped fixture holes, ground strap, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - Old work residential construction 2 HR fire resistive walls and Ceilings (15 lbs fixture support) - Fiberglass reinforced polyester - thermoset box with galvanized steel snap bracket - Size: Depth=2", Dia=3 1/2" - Mount with Snap bracket/metal ears wall compression - Speed Klamps factory installed
GTiN 00085339460213
Width 3 in
Size Depth=2", Dia=3 1/2"
Color Beige,Tan
Type 3.5" Dia. Round Fixture Support (15 Lbs.) Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material Fiberglass Reinforced Polyester,Galvanized Steel,Thermoset
Applications Old work residential construction 2 HR fire resistive walls and Ceilings (15 lbs fixture support)
Mounting Type Snap Bracket/metal Ears Wall Compression
Depth 2 in
Family Brand Name Allied Moulded
Construction Injection Molded
Cable Entry Four "no Tools" Knockouts With 2 Speed "K" Clamps
Sub Brand FIBERGLASSBOX
