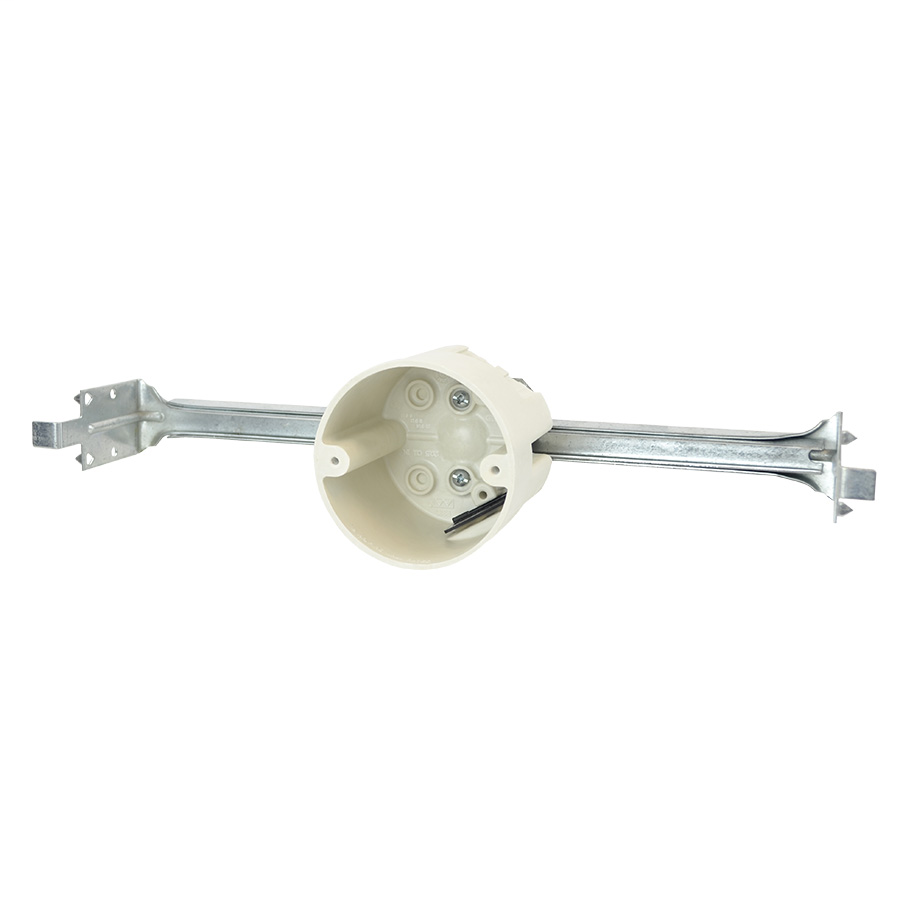

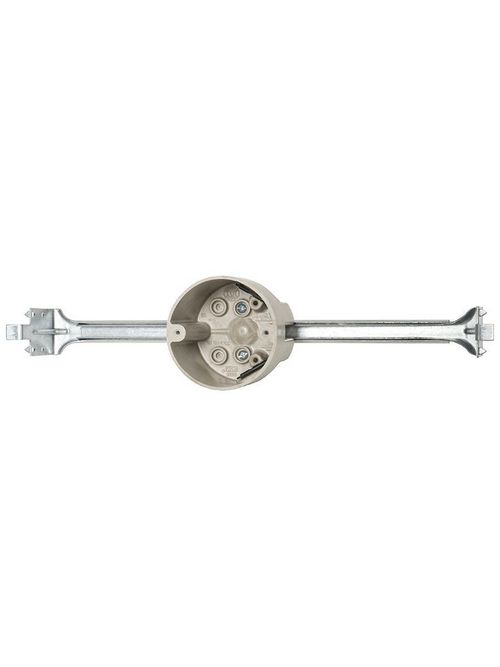

Allied Moulded Products 9335-BHK 2-7/8 x 3-1/2 Inch 20.5 In Fiberglass Round Ceiling Fixture Outlet Box
$661.72/c (100 ea)
141 Available for Delivery
Order by 06:00pm Friday for Delivery Monday
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 9335-BHK
Independent Electric Part # 233947

Features

Machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 9335-BHK
  • Width: 3.5 in.
  • Depth: 2-15/16 in.
  • Volume: 20.5 cu. in.
  • Type of Installation: New Work
  • Round Ceiling Box
  • Carton Quantity: 24
  • Carton Weight: 32 lb.
  • UPC: 085339881018
  • UNSPSC: 39121316
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Adjustable bar hanger - 16" to 24" on center joist application
  • Support Rating: 50 lbs fixture support

Additional Materials

  • Galvanized steel brackets and plated carbon steel fasteners
  • Polyvinyl chloride clamps

Application

New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support)

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 3 inches

Fire Resistance Classification in Floor-Ceiling Assemblies 2-Hours or Less

  • Distance between boxes in adjacent cavities may be reduced to 5 ½ inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

Item Long Description 20.5 Cu. In. 3.5" dia. round fixture support box for use with nonmetallic sheathed cable - Machine tapped fixture holes, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support) - Fiberglass reinforced polyester - thermoset box with galvanized steel adjustable bar hanger - Size: Depth=2 15/16", Dia=3 1/2" - Mount with Adjustable bar hanger - 16" to 24" on center joist application - Speed Klamps factory installed
GTiN 00085339881018
Width 3-1/2 in
Size Depth=2 15/16", Dia=3 1/2"
Color Beige/tan
Type 3.5" Dia. Round Fixture Support Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Metallic,Non-Conductive
Material Fiberglass Reinforced Polyester - Thermoset Box With Galvanized Steel Adjustable Bar Hanger
Applications New work residential construction 2 HR fire resistive walls and ceilings (50 lbs. fixture support)
Mounting Type Adjustable Bar Hanger - 16" To 24" On Center Joist Application
Depth 2-15/16 in
Family Brand Name Allied Moulded
Construction Injection Molded
Cable Entry Four "no Tools" Knockouts With 2 Speed "K" Clamps
Sub Brand FIBERGLASSBOX
