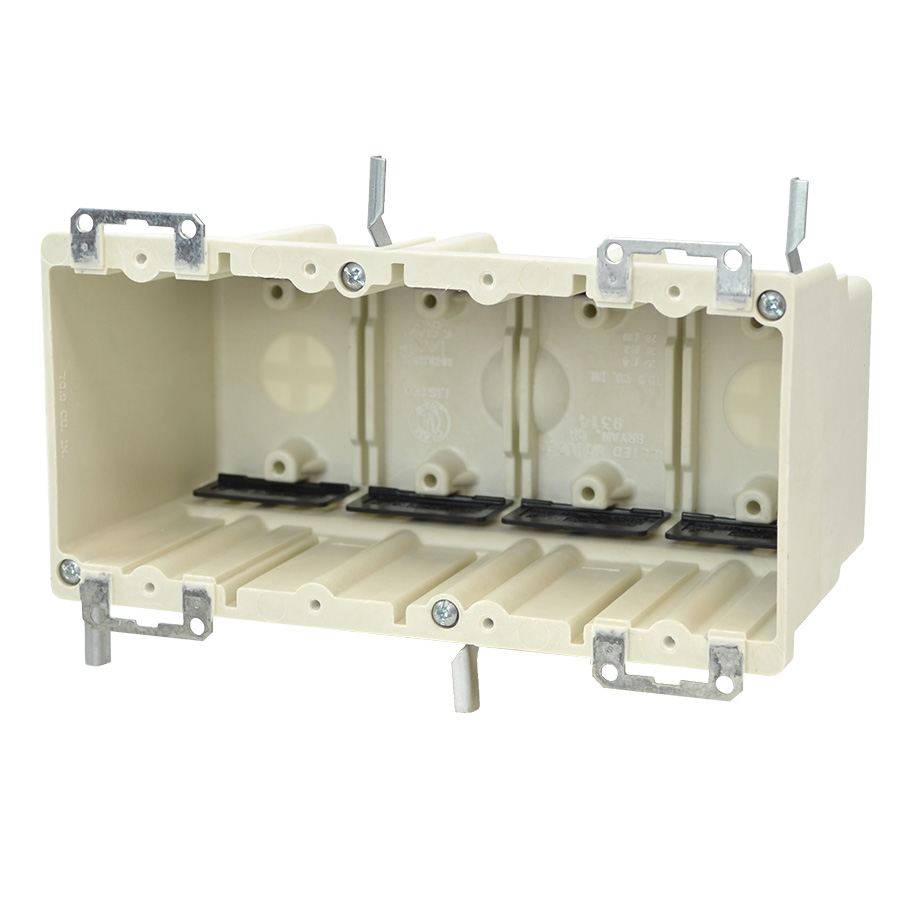

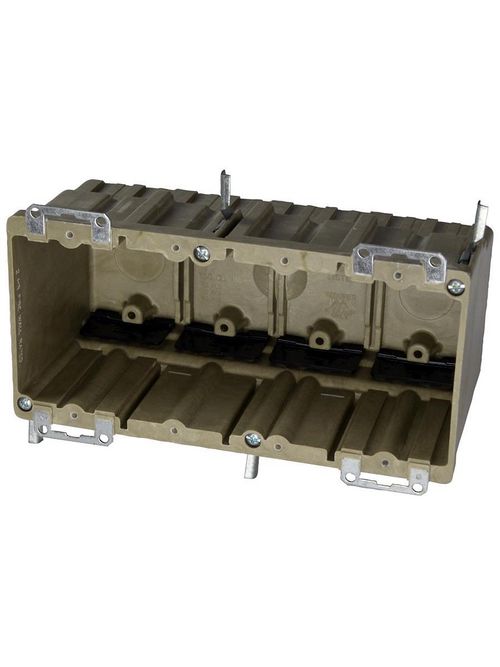

Allied Moulded Products 9314-EWK 3-9/16 x 7-11/16 x 3-23/32 Inch 70 In 4-Gang Fiberglass Switch/Receptacle Outlet Box
Product image thumbnail 0
Product image thumbnail 1
$1,178.34/c (100 ea)
Usually ships within 6 to 8 Days
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 9314-EWK
Independent Electric Part # 222179

Features

Machine tapped device holes, slot provision for low voltage divider, rectangular exterior for easy cut-in, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 9314-EWK
  • Height: 3-3/4 in.
  • Width: 7-11/16 in.
  • Depth: 3-9/16 in.
  • Volume: 70 cu. in.
  • Type of Installation: Old Work
  • Wall Box
  • Number of Gangs: 4
  • Carton Quantity: 6
  • Carton Weight: 8 lb.
  • UPC: 085339318002
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Metal wing brackets/metal ears wall compression

Additional Materials

  • Galvanized steel brackets and plated carbon steel fasteners
  • Polyvinyl chloride clamps

Application

Old work residential construction 2 HR fire resistive walls

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Shall be separated by a horizontal distance of not less than 24 inches
  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)

Overview

Item Long Description 70.0 Cu. In. Four gang electrical box for use with nonmeatllic sheathed cable - Machine tapped device holes, slot provision for low voltage divider, rectangular exterior for easy cut-in, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - Old work residential construction 2 HR fire resistive walls - Fiberglass reinforced polyester - thermoset box - Size: D=3 9/16", W=7 11/16", H=3 3/4" - Mount with Metal wing brackets/metal ears wall compression
GTiN 00085339318002
Width 7-11/16 in
Size D=3 9/16", W=7 11/16", H=3 3/4"
Color Beige,Tan
Type Four Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Non-Conductive,Non-Metallic
Material Fiberglass Reinforced Polyester
Applications Old work residential construction 2 HR fire resistive walls
Mounting Type Metal Wing Brackets/metal Ears Wall Compression
Depth 3 in
Height 3 in
Standard UL 514 C
Family Brand Name Allied Moulded
Construction Injection Molded
Number of Gangs 4 Gang
Cable Entry Sixteen "no Tools" Knockouts With 8 Speed "K" Clamps And 2 1/2" Knockouts
Sub Brand FIBERGLASSBOX
