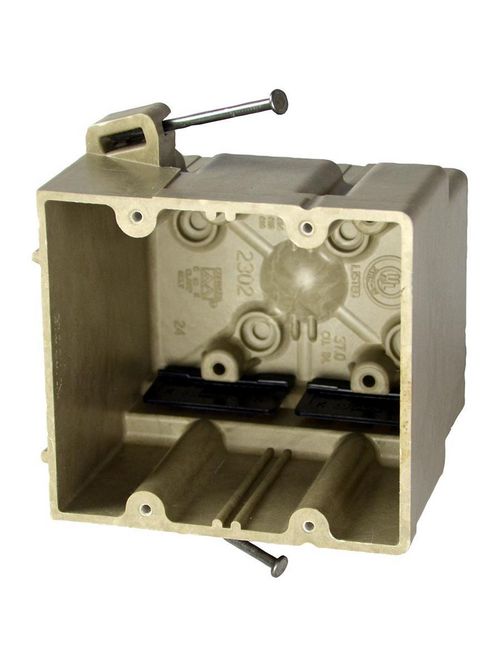

Allied Moulded Products 2302-NK 3-7/16 x 4 x 3-3/4 Inch 37 In 2-Gang Angled Mid-Nail Switch/Receptacle Outlet Box
$443.98/c (100 ea)
Usually ships within 6 to 8 Days
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Allied Moulded Products
Mfg Catalog # 2302-NK
Independent Electric Part # 213708

Features

Machine tapped device holes, slot provision for low voltage divider, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures, Speed "K" Clamps factory installed

Specifications

  • Brand: fiberglassBOX
  • Catalog #: 2302-NK
  • Height: 3-3/4 in.
  • Width: 4 in.
  • Depth: 3-7/16 in.
  • Volume: 37 cu. in.
  • Type of Installation: New Work
  • Wall Box
  • Number of Gangs: 2
  • Carton Quantity: 48
  • Carton Weight: 30 lb.
  • UPC: 085339130758
  • UNSPSC: 39121308
  • Country of Origin: United States of America
  • Color: Beige/tan
  • Material: Fiberglass reinforced polyester BMC
  • Mounting: Angled mid nails

Additional Materials

  • Carbon steel fasteners
  • Polyvinyl chloride clamps

Application

New work residential construction 2 HR fire resistive walls

Standards

ANSI / UL 514C: File No. E30594

Fire Classification

Fire Test of Building Construction Materials

  • ANSI / UL 263: File No. CEYY.R9379 (Category / File No.)
  • Note: Products must also be certified to: ANSI / UL 514C

Fire Resistance Classification in Wall Assemblies 2-Hours or less

  • Note: For more details please refer to the UL fire resistive directory and Allied Moulded’s CEYY.9379 (Outlet boxes and fittings classified for fire resistance)
  • Shall be separated by a horizontal distance of not less than 3 inches

Overview

Item Long Description 37.0 Cu. In. two gang electrical box for use with nonmeatllic sheathed cable - Machine tapped device holes, slot provision for low voltage divider, offset gauge marks, leveling ribs, rigid hard box construction, no distortion with high temperatures, shatter resistant with low temperatures - New work residential construction 2 HR fire resistive walls - Fiberglass reinforced polyester - thermoset box - Size:D=3 7/16", W=4", H=3 3/4" - Mount with Angled mid nails - Speed Klamps factory installed
GTiN 00085339130758
Width 4 in
Size D=3 7/16", W=4", H=3 3/4"
Color Beige/tan
Type Two Gang Electrical Box For Use With Nonmetallic Sheathed Cable
Insulation Type Nonconductive Nonmetallic
Material Fiberglass Reinforced Polyester
Applications New work residential construction 2 HR fire resistive walls
Mounting Type Angled Mid Nails
Depth 3 in
Height 3 in
Family Brand Name Allied Moulded
Construction Injection Molded
Number of Gangs 2 Gang
Cable Entry Eight "no Tools" Knockouts With 4 Speed "K" Clamps
Sub Brand FIBERGLASSBOX
