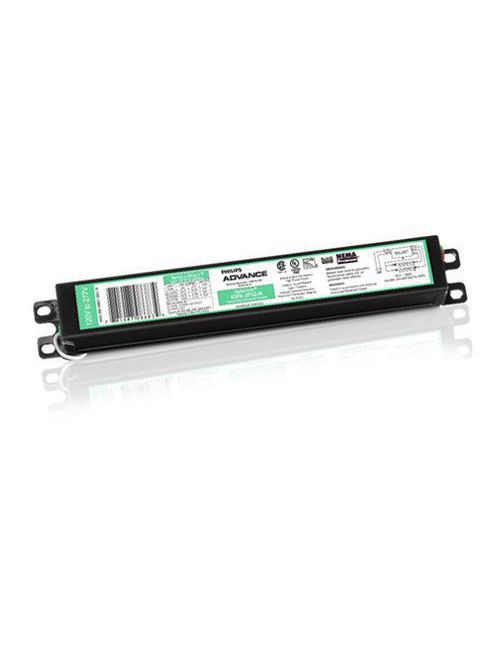

Advance IOPA4P32N35I 120 to 277 VAC 50/60 Hz 32 W 4-Lamp T8 Electronic Ballast
Product image thumbnail 0
Product image thumbnail 1
$22.58/ea
Usually ships within 6 to 8 Days
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance / Philips
Mfg Catalog # IOPA4P32N35I
Independent Electric Part # 372593

idw

Product Data

  • Bar code on case: 30781087115245
  • Product number: IOPA4P32N35I
  • eop_net_weight_pp: 0.350 kg
  • Pieces per Sku: 1
  • Skus/Case: 10
  • Bar code on pack: 781087115244
  • Full product name: ELE BALLAST (4) F32T8 120-277V
  • Short product name: ELE BALLAST (4) F32T8 120-277V
  • Logistics code(s): 913701235501

General Characteristics

  • Number of Lamps: 3/4 piece
  • Line Frequency: 50/60 Hz
  • Starting Method: Instant Start
  • Ballast Type: Electronic Fluorescent
  • Housing Dimensions: 9.5" x 1.3" x 1.0"
  • Housing: N
  • Housing Material: Metal
  • Base Model: IOPA4P32N
  • Suitable for Outdoor use?: Yes
  • Input Voltage: 120-277 V
  • Lamp Type: F32T8
  • Family Name: Optanium

Approval & Application Chars

  • CSA certificate: Yes
  • EMC Immunity: FCC Non-Consumer
  • Approbation Marks: UL, CSA, NEMA Premium, RoHS
  • Circle E logo: No
  • CSA E: No
  • Energy Star: No
  • RoHS Compliant: Yes
  • cUL certificate: No
  • NEMA Premium: Yes
  • NOM certificate: No
  • CEC Listing: Yes
  • DOE: No
  • CEE Rated: Yes
  • SASO Certificate: No
  • UL Listed: Yes
  • FIDE Certificate: No
  • UL Recognized: No

Operating Characteristics

  • Ballast factor: 0.87 -
  • Input Power Gear: 109-106 W
  • Sound Rating: A
  • Lamp Current Crest Factor: 1.6 -
  • Automatic restart: Yes
  • Ballast Efficacy Factor: 0.8 -
  • Ignition time: 0.1 s
  • Max THD: 10 %
  • Power Factor: 0.98

Product Dimensions

  • Length A2: 8.90 in
  • Width B1: 1.30 in
  • Length A1: 9.50 in
  • Height C1: 1.00 in

Wiring Characteristics

  • Allowed Wiring Config(Through): Yes
  • Connector type: No connector
  • Wire Length by Color: See data sheet
  • Max Dist.Ball to Lamp(Through): ES = 6' / Standard = 20'
  • Color input terminals: No terminals
  • Max Dist. Ball to Lamp(Tandem): ES = 6' / Standard = 20'
  • Allowed Wiring Config(Tandem): Yes
  • Max Dist. Ball to Lamp(Remote): ES = 6' / Standard = 20'
  • Wire Striplength: 0.50/0.375 mm
  • Wire Type: Solid
  • Allowed Wiring Config(Remote): Yes
  • Color output terminals: No terminals
  • Wire Gauge: 18AWG
  • Lamp Connection: Parallel

System Chars On Driver Level

  • Rated Lamp Watts: 32W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Other Downloads

Leaflets

Overview

Item Long Description Reliable and energy efficient Philips Advance's Centium commercial grade specifications, plus added benefits of lamp striation reduction technology.
GTiN 00781087115244
Length 8.90 in
Width 1.30 in
Type Electronic Fluorescent
Height 1.00 in
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Wattage 32 Watt
Family Brand Name Advance
Lamp Type F32T8
Number of Lamps 4
Ballast Type Electronic Fluorescent
Housing Material Metal
Start Type INSTANT START
Power Factor 0.98
Ballast Factor 0.87
Lamp Wattage 32 W
Total Harmonic Distortion 10
Sub Brand Optanium
Input Voltage 120/277 V
Input Wattage 109-106 W
Voltage 120-277 Volt
