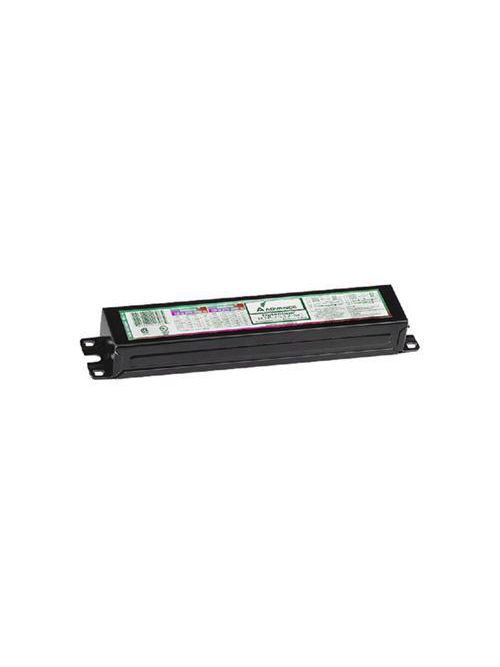

Advance IOPA2P32N35I 120 to 277 VAC 50/60 Hz 32 W 2-Lamp T8 Electronic Ballast
$17.68/ea
Usually ships within 6 to 8 Days
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance / Philips
Mfg Catalog # IOPA2P32N35I
Independent Electric Part # 322332

idw

Product Data

  • eop_net_weight_pp: 0.323 kg
  • Skus/Case: 10
  • Pieces per Sku: 1
  • Short product name: ELE BALLAST (2) F32T8 120-277V
  • Logistics code(s): 913701216301
  • Product number: IOPA2P32N35I
  • Full product name: ELE BALLAST (2) F32T8 120-277V
  • Bar code on case: 30781087086835
  • Bar code on pack: 781087086834

General Characteristics

  • Base Model: IOPA2P32N
  • Line Frequency: 50/60 Hz
  • Lamp Type: F32T8
  • Starting Method: Instant Start
  • Family Name: Optanium
  • Housing Material: Metal
  • Suitable for Outdoor use?: Yes
  • Housing Dimensions: 9.5" x 1.3" x 1.0"
  • Input Voltage: 120-277 V
  • Number of Lamps: 1/2 piece
  • Ballast Type: Electronic Fluorescent
  • Housing: N

Approval & Application Chars

  • Circle E logo: No
  • EMC Immunity: FCC Non-Consumer
  • SASO Certificate: No
  • CEE Rated: Yes
  • CSA certificate: Yes
  • DOE: No
  • CSA E: Yes
  • NEMA Premium: Yes
  • RoHS Compliant: Yes
  • cUL certificate: No
  • UL Recognized: No
  • CEC Listing: Yes
  • Approbation Marks: UL, CSA, NEMA Premium, RoHS
  • Energy Star: No
  • NOM certificate: No
  • UL Listed: Yes
  • FIDE Certificate: No

Operating Characteristics

  • Power Factor: 0.98
  • Max THD: 10 %
  • Sound Rating: A
  • Automatic restart: Yes
  • Lamp Current Crest Factor: 1.6 -
  • Ballast Efficacy Factor: 1.58 -
  • Ignition time: 0.1 s
  • Input Power Gear: 55-56 W
  • Ballast factor: 0.87 -

Product Dimensions

  • Height C1: 1.00 in
  • Length A1: 9.50 in
  • Length A2: 8.90 in
  • Width B1: 1.30 in

Wiring Characteristics

  • Allowed Wiring Config(Tandem): Yes
  • Max Dist.Ball to Lamp(Through): ES = 6' / Standard = 20'
  • Color output terminals: No terminals
  • Allowed Wiring Config(Remote): Yes
  • Color input terminals: No terminals
  • Wire Type: Solid
  • Max Dist. Ball to Lamp(Remote): ES = 6' / Standard = 20'
  • Wire Gauge: 18AWG
  • Allowed Wiring Config(Through): Yes
  • Lamp Connection: Parallel
  • Max Dist. Ball to Lamp(Tandem): ES = 6' / Standard = 20'
  • Wire Length by Color: See data sheet
  • Wire Striplength: 0.50/0.375 mm
  • Connector type: No connector

System Chars On Driver Level

  • Rated Lamp Watts: 32W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Leaflets

Other Downloads

Overview

Item Long Description Reliable and energy efficient Philips Advance's Centium commercial grade specifications, plus added benefits of lamp striation reduction technology.
GTiN 00781087086834
Length 8.90 in
Width 1.30 in
Height 1.00 in
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Family Brand Name Advance
Lamp Type F32T8
Number of Lamps 2
Ballast Type Electronic Fluorescent
Housing Material Metal
Start Type INSTANT START
Power Factor 0.98
Lamp Wattage 32 W
Sub Brand OPTANIUM
Input Voltage 120/277 V
Input Wattage 55-56 W
Voltage null
