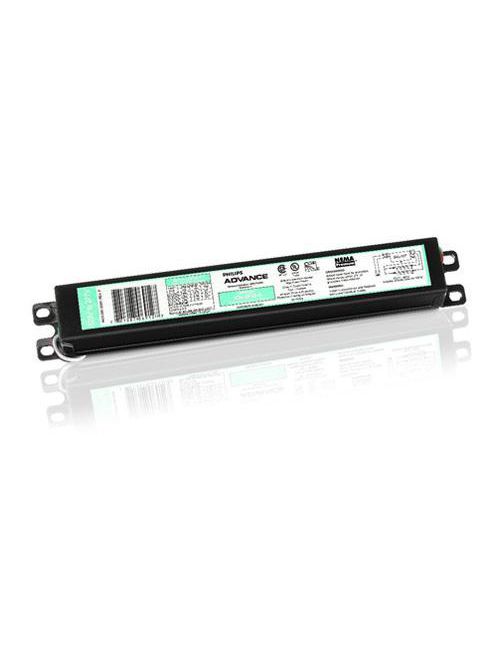

Advance ICN4P32N35I 120 to 277 VAC 50/60 Hz 32 W 4-Lamp T8 Electronic Ballast
Product image thumbnail 0
Product image thumbnail 1
$20.88/ea
21 Available for Delivery
Order by 06:00pm Wednesday for Delivery Thursday
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance / Philips
Mfg Catalog # ICN4P32N35I
Independent Electric Part # 305400

idw

Product Data

  • Product number: ICN4P32N35I
  • Bar code on pack: 781087091517
  • Logistics code(s): 913701220301
  • Skus/Case: 10
  • Short product name: ELE BALLAST (4) F32T8 120-277V
  • Bar code on case: 30781087091518
  • Full product name: ELE BALLAST (4) F32T8 120-277V
  • eop_net_weight_pp: 0.459 kg
  • Pieces per Sku: 1

General Characteristics

  • Suitable for Outdoor use?: Yes
  • Housing Material: Metal
  • Ballast Type: Electronic Fluorescent
  • Family Name: Centium
  • Starting Method: Instant Start
  • Housing Dimensions: 9.5" x 1.3" x 1.0"
  • Base Model: ICN4P32N
  • Lamp Type: F32T8
  • Number of Lamps: 3/4 piece
  • Housing: N
  • Input Voltage: 120-277 V
  • Line Frequency: 50/60 Hz

Approval & Application Chars

  • NOM certificate: Yes
  • EMC Immunity: FCC Non-Consumer
  • RoHS Compliant: Yes
  • UL Listed: Yes
  • CSA certificate: Yes
  • FIDE Certificate: No
  • UL Recognized: No
  • NEMA Premium: Yes
  • Approbation Marks: UL, CSA, NEMA Premium, RoHS
  • cUL certificate: No
  • CEC Listing: Yes
  • CSA E: No
  • CEE Rated: Yes
  • Energy Star: No
  • SASO Certificate: No
  • Circle E logo: No
  • DOE: No

Operating Characteristics

  • Lamp Current Crest Factor: 1.7 -
  • Ballast factor: 0.89 -
  • Max THD: 10 %
  • Ballast Efficacy Factor: 0.8 -
  • Input Power Gear: 111-111 W
  • Power Factor: 0.98
  • Automatic restart: Yes
  • Ignition time: 0.1 s
  • Sound Rating: A

Product Dimensions

  • Length A1: 9.50 in
  • Width B1: 1.30 in
  • Length A2: 8.90 in
  • Height C1: 1.00 in

Wiring Characteristics

  • Allowed Wiring Config(Remote): Yes
  • Wire Length by Color: See data sheet
  • Allowed Wiring Config(Tandem): Yes
  • Color output terminals: No terminals
  • Connector type: No connector
  • Max Dist.Ball to Lamp(Through): ES = 6' / Standard = 20'
  • Wire Type: Solid
  • Allowed Wiring Config(Through): Yes
  • Max Dist. Ball to Lamp(Remote): ES = 6' / Standard = 20'
  • Wire Gauge: 18AWG
  • Wire Striplength: 0.50/0.375 mm
  • Max Dist. Ball to Lamp(Tandem): ES = 6' / Standard = 20'
  • Color input terminals: No terminals
  • Lamp Connection: Parallel

System Chars On Driver Level

  • Rated Lamp Watts: 32W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Other Downloads

Leaflets

Overview

Item Long Description Reliable and energy efficient Philips Advance's Centium commercial grade specifications, plus added benefits of lamp striation reduction technology.
GTiN 00781087091517
Length 8.90 in
Width 1.30 in
Height 1.00 in
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Wattage 32 Watt
Family Brand Name Advance
Lamp Type F32T8
Number of Lamps 4
Ballast Type Electronic Fluorescent
Housing Material Metal
Power Factor 0.98
Lamp Wattage 32 W
Input Voltage 120/277 V
Input Wattage 111-111 W
Voltage 120-277 Volt
