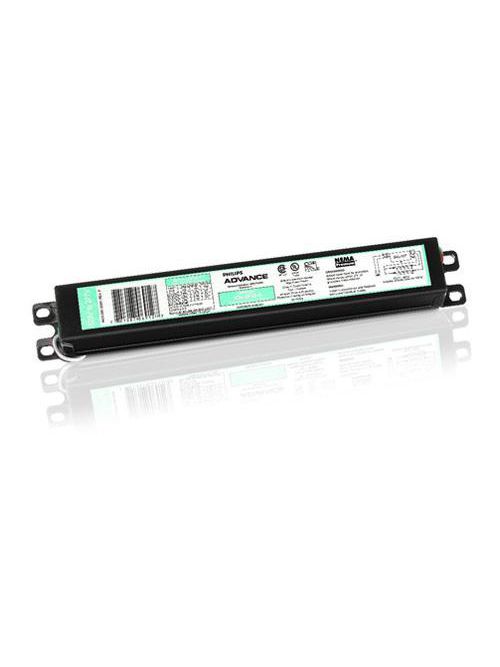

Advance ICN2P32N35I 120 to 277 VAC 50/60 Hz 32 W 2-Lamp T8 Electronic Ballast
Product image thumbnail 0
Product image thumbnail 1
$16.83/ea
49 Available for Delivery
Order by for Delivery
Not Available at 91
Available at These Locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Advance / Philips
Mfg Catalog # ICN2P32N35I
Independent Electric Part # 41410

idw

Product Data

  • Pieces per Sku: 1
  • Logistics code(s): 913710842701
  • Bar code on case: 30781087069128
  • Short product name: ELE BALLAST (2) F32T8 120-277V
  • eop_net_weight_pp: 0.305 kg
  • Skus/Case: 10
  • Full product name: ELE BALLAST (2) F32T8 120-277V
  • Bar code on pack: 781087069127
  • Product number: ICN2P32N35I

General Characteristics

  • Housing: N
  • Number of Lamps: 1/2 piece
  • Starting Method: Instant Start
  • Ballast Type: Electronic Fluorescent
  • Lamp Type: F32T8
  • Family Name: Centium
  • Housing Material: Metal
  • Base Model: ICN2P32N
  • Housing Dimensions: 9.5" x 1.3" x 1.0"
  • Line Frequency: 50/60 Hz
  • Suitable for Outdoor use?: Yes
  • Input Voltage: 120-277 V

Approval & Application Chars

  • UL Listed: Yes
  • CEC Listing: Yes
  • EMC Immunity: FCC Non-Consumer
  • NOM certificate: Yes
  • cUL certificate: No
  • RoHS Compliant: Yes
  • UL Recognized: No
  • SASO Certificate: No
  • CSA E: Yes
  • Circle E logo: No
  • Energy Star: No
  • Approbation Marks: UL, CSA, NEMA Premium, RoHS
  • CSA certificate: Yes
  • FIDE Certificate: No
  • NEMA Premium: Yes
  • DOE: No
  • CEE Rated: Yes

Operating Characteristics

  • Ignition time: 0.1 s
  • Max THD: 10 %
  • Lamp Current Crest Factor: 1.7 -
  • Ballast factor: 0.89 -
  • Ballast Efficacy Factor: 1.59 -
  • Automatic restart: Yes
  • Sound Rating: A
  • Power Factor: 0.98
  • Input Power Gear: 56-56 W

Product Dimensions

  • Length A2: 8.90 in
  • Height C1: 1.00 in
  • Width B1: 1.30 in
  • Length A1: 9.50 in

Wiring Characteristics

  • Max Dist.Ball to Lamp(Through): ES = 6' / Standard = 20'
  • Color input terminals: No terminals
  • Wire Striplength: 0.50/0.375 mm
  • Wire Type: Solid
  • Allowed Wiring Config(Tandem): Yes
  • Color output terminals: No terminals
  • Allowed Wiring Config(Through): Yes
  • Wire Gauge: 18AWG
  • Lamp Connection: Parallel
  • Max Dist. Ball to Lamp(Remote): ES = 6' / Standard = 20'
  • Connector type: No connector
  • Allowed Wiring Config(Remote): Yes
  • Wire Length by Color: See data sheet
  • Max Dist. Ball to Lamp(Tandem): ES = 6' / Standard = 20'

System Chars On Driver Level

  • Rated Lamp Watts: 32W

Temperature Characteristics

  • T-case maximum: 70 C

Documents

Leaflets

Other Downloads

Overview

Item Long Description Reliable and energy efficient Philips Advance's Centium commercial grade specifications, plus added benefits of lamp striation reduction technology.
GTiN 00781087069127
Length 8.90 in
Width 1.30 in
Height 1.00 in
Wire Size 18 AWG
Wire Type Solid
Frequency 50/60 Hz
Family Brand Name Advance
Lamp Type F32T8
Number of Lamps 2
Ballast Type Electronic Fluorescent
Housing Material Metal
Start Type INSTANT START
Power Factor 0.98
Lamp Wattage 32 W
Sub Brand CENTIUM
Input Voltage 120/277 V
Input Wattage 56-56 W
Voltage 120-277 Volt
